6. Final Printed Circuit Board

posted Feb 11, 2010, 11:28 PM by Bill Bai   [ updated Nov 2, 2010, 3:38 PM ]
Final PCB with LCD installed.

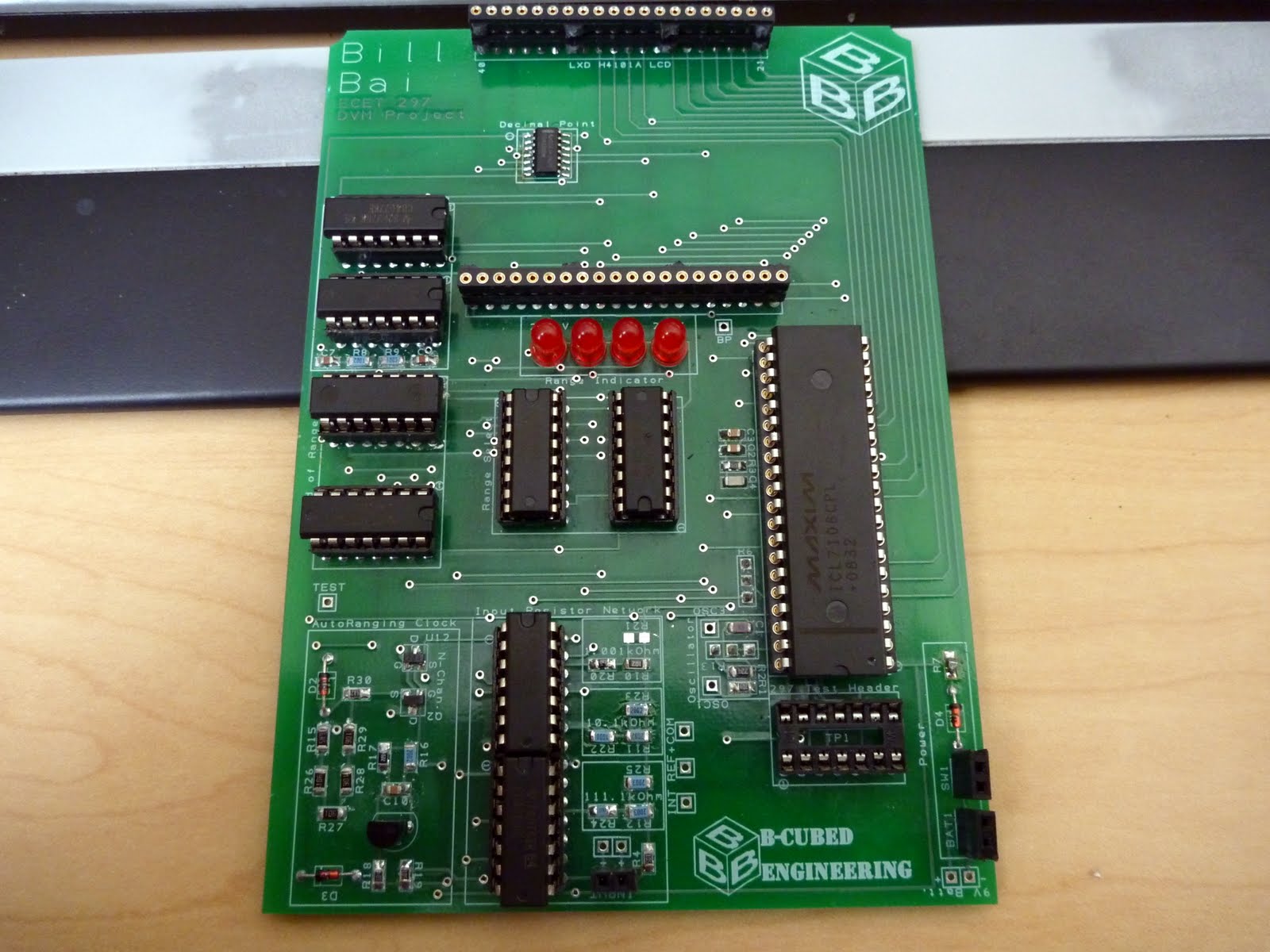

Final PCB without the LCD.  Note the surface mount SO-14 chip that is under the LCD.  The SmallOutline-14 (SO-14) chip is basically the same chip as the other larger DIP-14 chips with a much smaller footprint.
